RFID for Underground Pipeline Tracking with SIC379
Underground pipelines are critical components of modern infrastructure, supporting water distribution, gas networks, wastewater systems, and telecommunication services. Despite their importance, underground pipeline tracking remains a major challenge due to inaccurate records, incomplete maintenance history, and limited visibility of field-installed infrastructure.
The Challenge of Managing Buried Assets
Traditionally, utility operators rely on paper maps, physical markers, and disconnected databases. These methods have served the industry for decades. However, they also create real costs. For example, crews waste hours locating a single valve. In addition, poor records lead to expensive excavation damage. Meanwhile, utility networks keep expanding. As a result, operators now need reliable and digitalized underground pipeline tracking solutions.
How RFID Enables Underground Pipeline Tracking
RFID (Radio Frequency Identification) gives every buried asset a digital identity. Therefore, it offers a far more efficient approach to underground pipeline tracking. Operators fit RFID tags at critical points such as pipe joints, valves, access chambers, and maintenance covers. Field personnel then scan each tag with a handheld reader. In seconds, they retrieve installation records, material specifications, ownership details, and maintenance history.

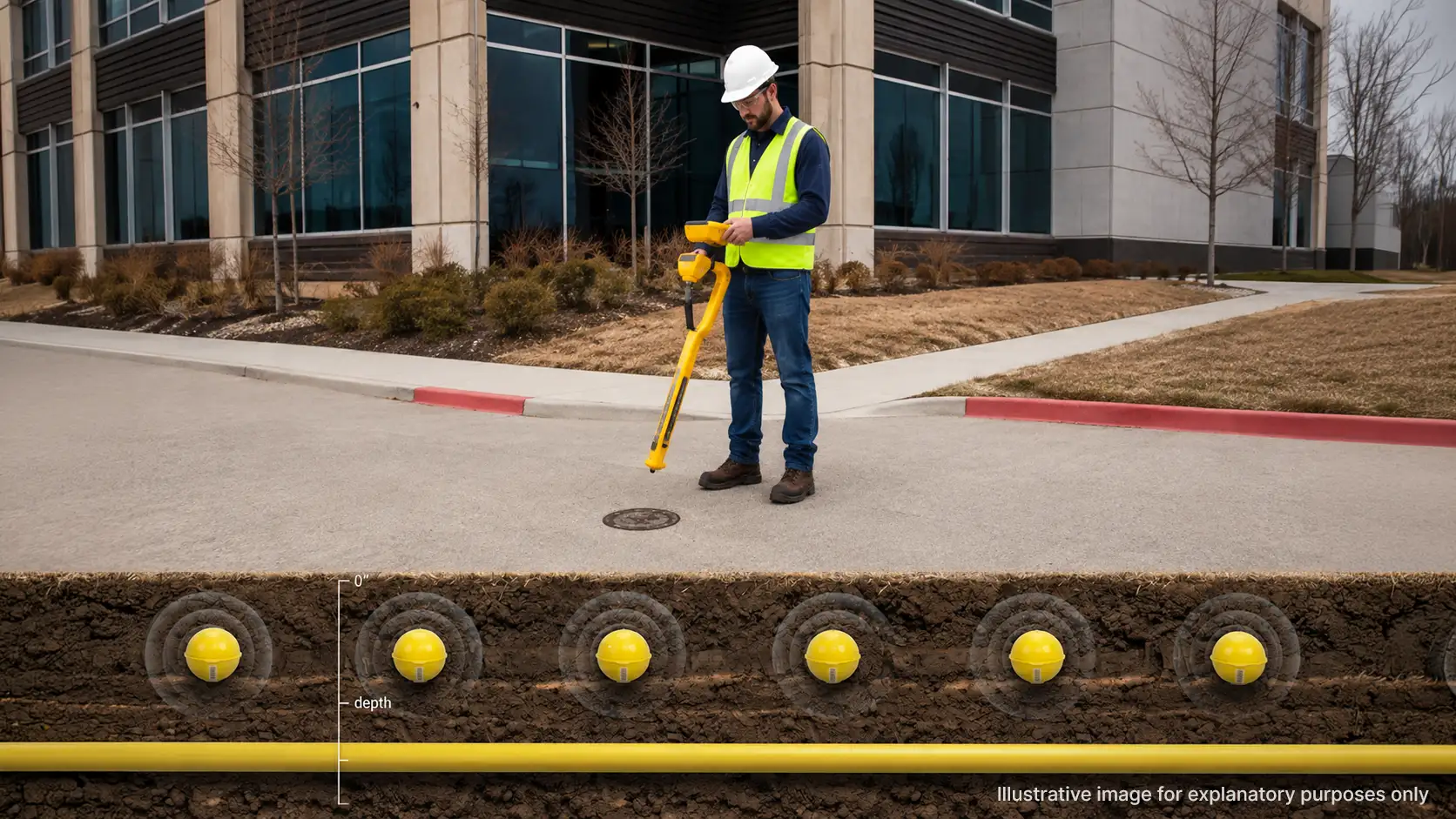

Fig. 1: Field identification of underground utility assets using a handheld RFID locator.
Adding Location Intelligence with GIS
GIS (Geographic Information Systems) raises the value of RFID even further. These platforms link asset data to geographic coordinates. As a result, operators can view underground assets on digital maps. Moreover, maintenance teams locate assets faster and verify field information on the spot. Planning for repair, inspection, and network expansion also improves.
SIC379: A Low Frequency RFID Platform for Underground Pipeline Tracking
To support these demanding applications, the SIC379 RFID chip from Silicon Craft provides a robust Low Frequency RFID platform designed for underground pipeline tracking and other long-read-range applications. Operating at 134.2 kHz with Half Duplex (HDX) communication technology, SIC379 delivers reliable performance in underground environments where moisture, soil, and construction materials can challenge conventional identification technologies.
Storing Asset Records Directly in the Tag
For underground pipeline tracking and asset management, SIC379 pairs a factory-programmed Unique ID with 192-bit user memory. Each tag therefore works as a complete digital asset record. Operators store pipeline identification numbers, installation dates, and pipe material specifications. They can also add maintenance history, inspection status, and ownership records. Field crews then read all of it on site.
A key technical advantage of SIC379 is its integrated on-chip resonant capacitor and programmable tuning capacitor, enabling system designers to optimize tag resonance and maximize reading performance. These features contribute to improved read reliability and stable operation in challenging underground deployment conditions.

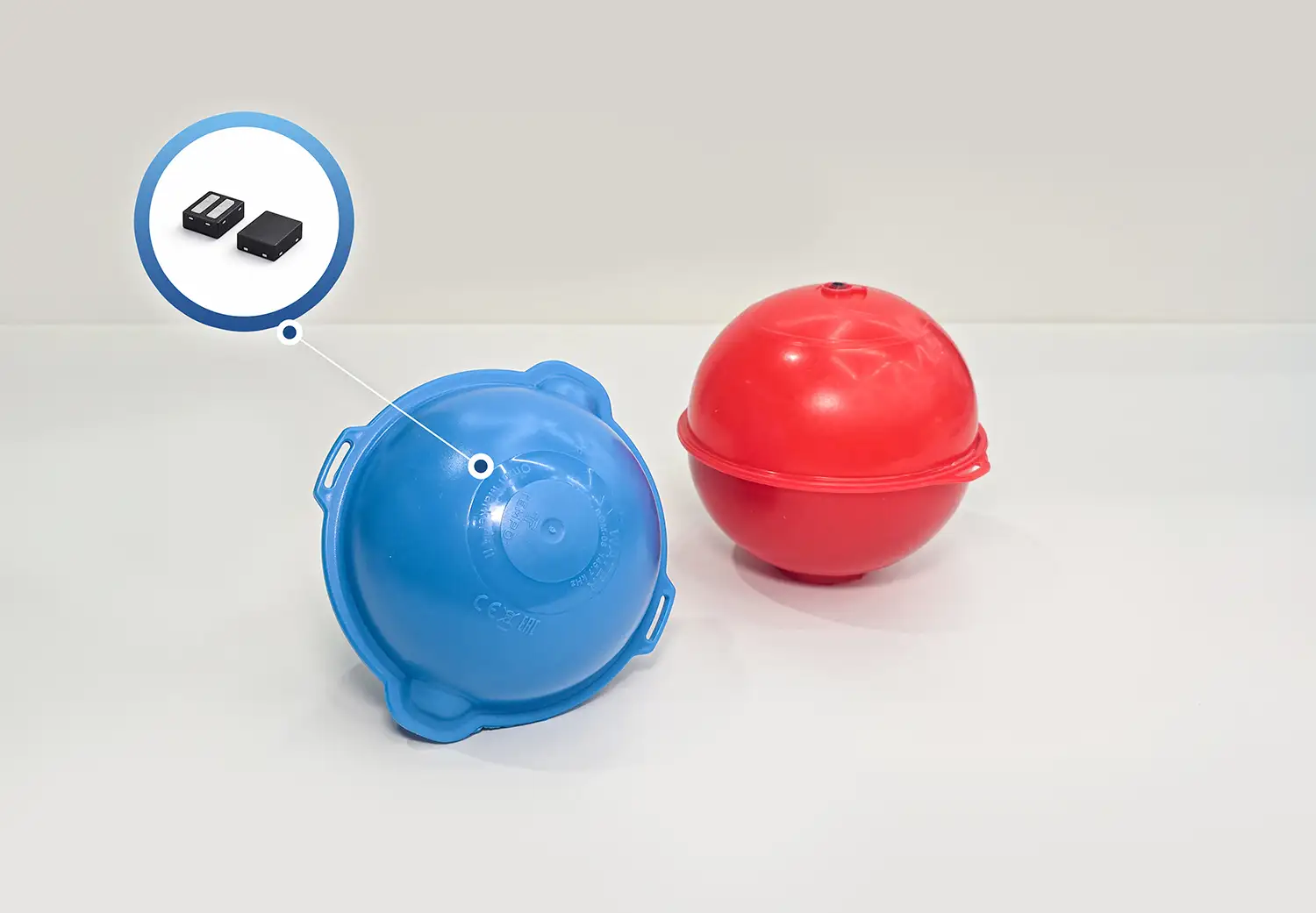

Fig. 2: SIC379 LF RFID chip for underground pipeline tracking, embedded into a utility asset tag.
Integration with GIS and Smart Utility Platforms
The flexibility of SIC379 also supports the growing demand for digital infrastructure management. RFID systems built around SIC379 can be integrated with GIS platforms, asset management software, and Smart Utility applications, creating a comprehensive digital ecosystem for underground pipeline tracking across the entire asset lifecycle.
Built for Long-Term Field Reliability
In addition, SIC379 is designed for long-term reliability with up to 100,000 EEPROM write cycles, 10-year data retention, and secure asset traceability through its factory-programmed identification structure. These capabilities make it an ideal RFID platform for underground pipeline tracking, utility infrastructure identification, and next-generation smart asset management solutions.
Key Benefits:
- Accurate underground pipeline tracking asset identification
- Enhanced pipeline traceability and maintenance efficiency
- 2 kHz LF RFID technology optimized for buried infrastructure
- Factory-programmed Unique ID for secure asset tracking
- 192-bit user memory for asset and maintenance records
- Long-read-range RFID performance
- 100,000 write cycles and 10-year data retention
- Ideal for Water, Gas, Utility, and Telecom infrastructure applications
- Easy integration with GIS and Smart Utility platforms
- Supports digital transformation of underground asset management systems
