NFC Forum Type 2 Tag IC with UART Interface and 8 GPIOs – SIC4310
$0.6203
Type: RFID IC
Packing: Tape & Reel (TR)
PCODE: P10CVQK4P20UT1001E3
Minimum/Maximum Order Quantity: 3,000
Shipping: Approximately 30-45 days From Silicon Craft Technology, Bangkok, Thailand
Please note: This product is sold in minimum order quantities. Orders must meet the required MOQ to proceed. For bulk order, please direct contact us.
3000 in stock
SIC4310
NFC Chip for Data Transfer & Energy Harvesting
DOWNLOAD FACTSHEETThe SIC4310 is a dual-port, 228-byte NFC-tag IC with an UART interface designed to harvest energy. The EEPROM memory can be accessed from both wireless interface which is RFID/NFC, and wire interface which is UART.
Highlight Features
-
NFC Forum Type 2 Tag with Additional Commands and Compliant with ISO/IEC 14443 A
-
3.3-V On-Chip Regulator for Power Harvesting Mode
-
Direct Data Transfer Between NFC and UART, or Vice Versa
-
Utilizes NFC Energy Harvesting for Self-Operation or External Power Sourcing
-
NFC Energy Harvesting: Up to 10mA Capability to Power External Circuits (Depending on the NFC Device’s Output Power)
| Product Attributes | Description |
|---|---|
| Specification | SIC4310 |
| Communication Protocol | |
| Standard | NFC Forum Type 2 Tag ISO/IEC 14443 A |
| Data Rate [kbps] | 106 |
| Interface | UART |
| Buffer Size [bytes] | 64 |
| Memory | |
| User Memory Size [bytes] | 196 |
| Data Retention [years] | 10 |
| Write Cycle [times] | 100k |
| Operating Condition | |
| Operating Temperature [°C] | -40 to +85 |
| Maximum Standby Current [μA] | 80 (use XVDD pin) |
| External Input Supply Voltage | 2.7 V to 3.6 V (use XVDD pin) |
| Maximum Harvesting Current | |
| Harvest from Mobile Phone | 7.82 mA @3 V |
| Harvest from Desktop Reader | 10.2 mA @2.87 V |
| Pinouts and Peripherals | |
| GPIO Pins | 8 |
| On-Chip Capacitor [pF] | 30.3 |

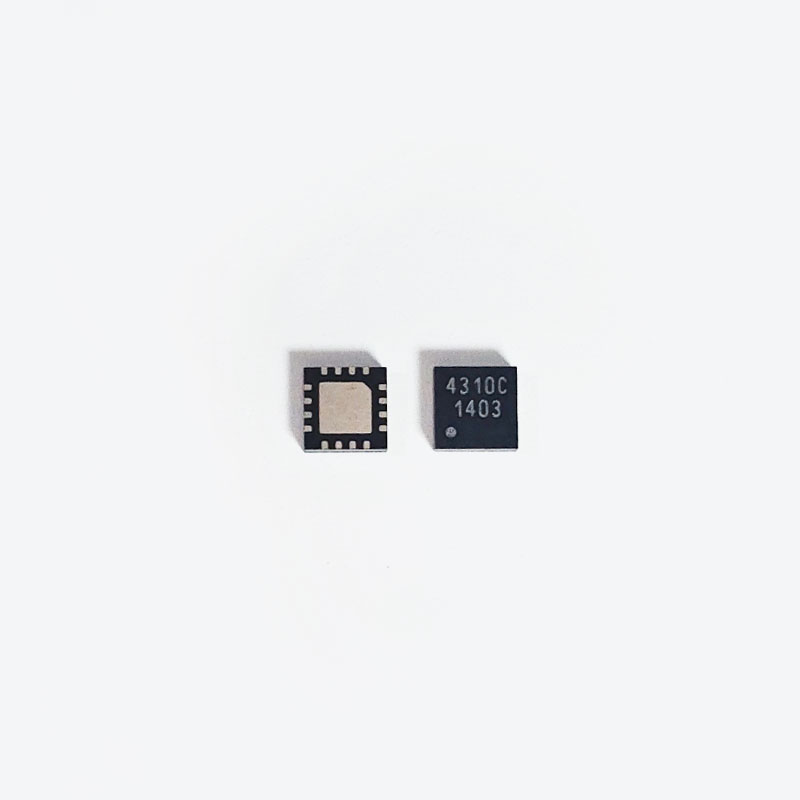

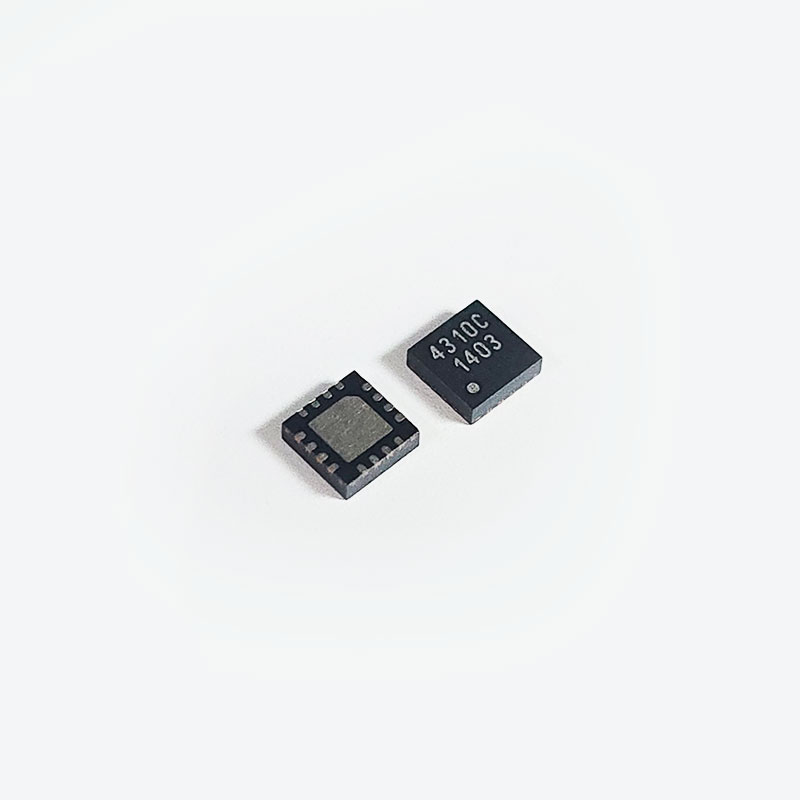

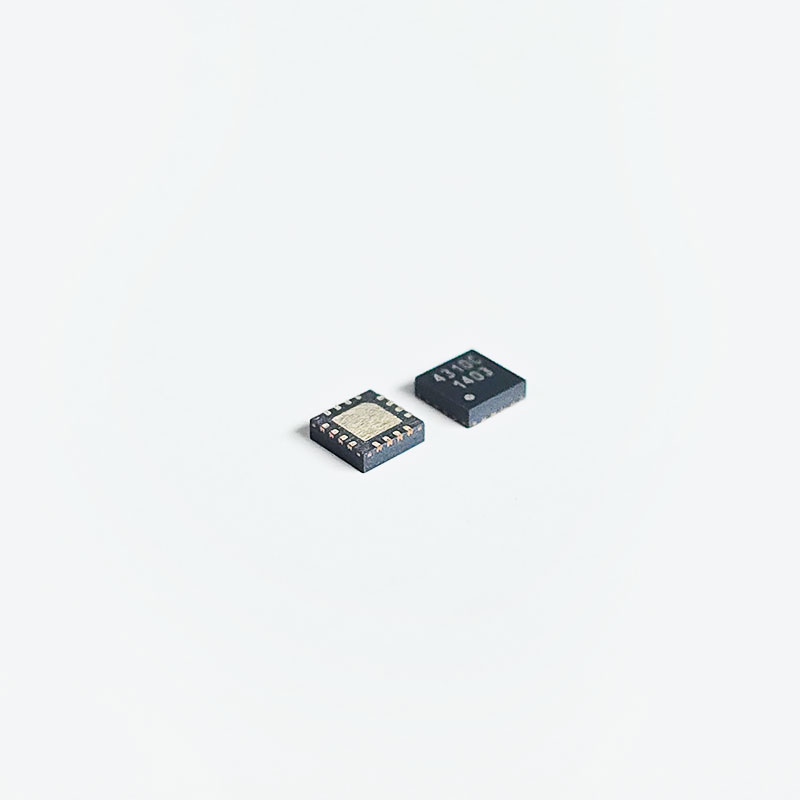

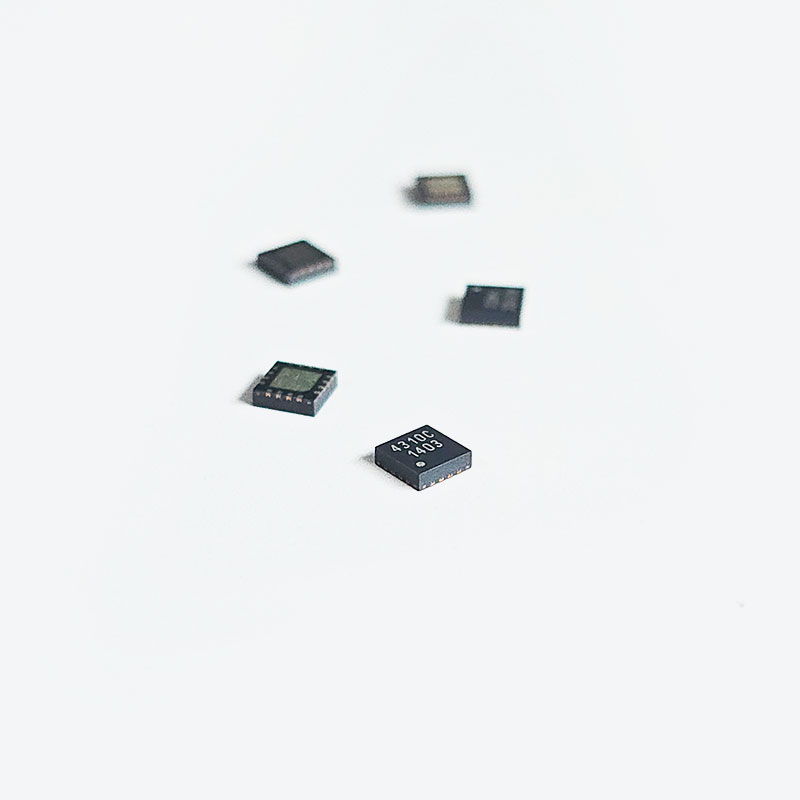

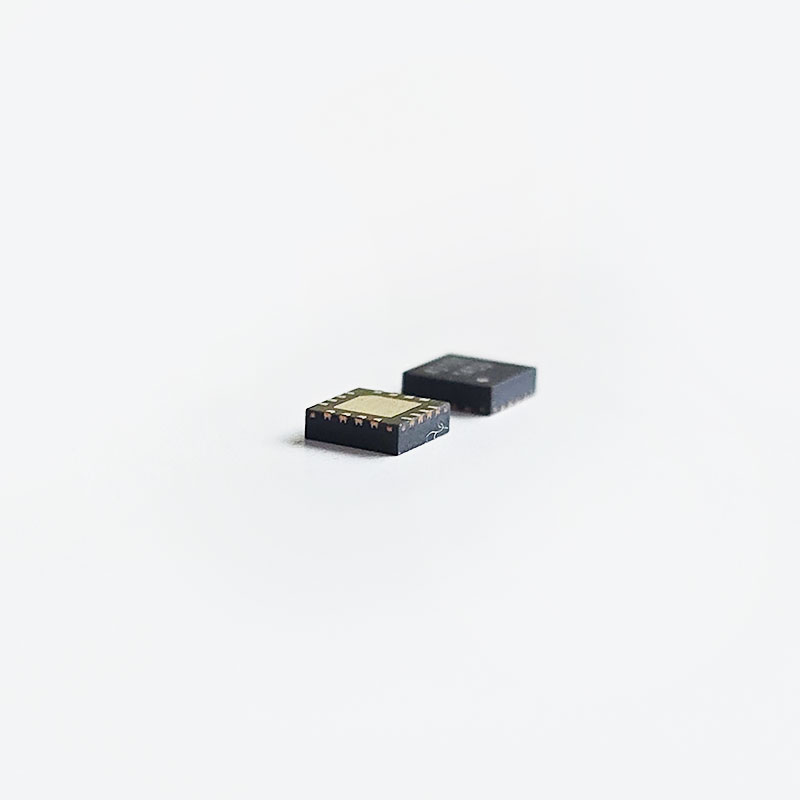

| Available Form Factor | QFN3x3 -16-Pins Package with Heat Sink |
Applications
-
Shared Facility Personalization and Controlling via NFC
-
Vending Machine
-
Washing Machine
-
Coffee Maker
-
Printer
-
Etc.
-
-
NFC Energy Harvesting Module
-
Zero-Energy Emergency Data Transfer Channel for Electricity, Water or Gas Metering
-
Firmware Upgrade via NFC
-
Customized/Proprietary System RFID
-
NFC Bridge for Embedded Systems
-
Smart Toys
-
Interactive Packaging
-
-
Etc.
DEVELOPMENT KIT SUPPORT MATERIAL
- Firmware Source Code (SIC4310-FU)
- Demonstration Software : iOS, Android and Windows.
- Reference PCB Design and Schematic Diagram
- Reference Antenna Design
Related products
Electrical Conductivity Sensor Interface Chip
Galvanostat Sensor Interface with NFC Forum Type 2 Tag IC – SIC4340
Sensor Interface Products
Biosensor Sensor Interface Chip
Potentiostat Sensor Interface with NFC Forum Type 2 Tag IC – SIC4341
NFC Tag IC for Web Authentication

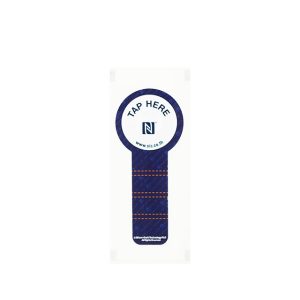

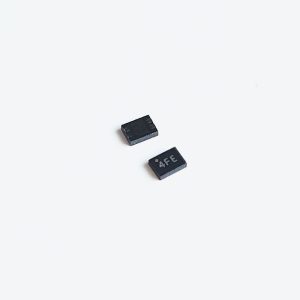

NFC Forum Type 2 Tag with Secured Rolling-Code Tamper Evidence – SIC43NT
