NFC/RFID card with AES-128 Security in OCB mode – SIC43S1

Name: NFC/RFID card with AES-128 Security in OCB mode - SIC43S1
SKU: P10CK081PB0S110D0CB-1
Availability: InStock

USD 5

Type: Development Kit

Packing: Retail Package

PCODE: PS1BBWH1PV0FVS111X4

Minimum Order Quantity: 1

Shipping: Approximately 30-45 days From Silicon Craft Technology, Bangkok, Thailand

5 in stock

Add to wishlist

SKU: P10CK081PB0S110D0CB-1 Categories: NFC Tag IC for Web Authentication, NFC Tags: NFC, ISO Card, NFC card, AES-128 Security

Description
Applications

SIC43S1
NFC Forum Type 2 Tag Card with AES-128 Security

DOWNLOAD Datasheet

The card is based on the SIC43S1 NFC chip operating at 13.56 MHz, offering 816 bytes of total memory with support for read/write operations and dynamic NDEF formatting. Integrated AES-128 encryption provides secure authentication and protected data communication for high-security applications.

Highlight Features

NFC Forum Type 2 Tag and Compliant with ISO/IEC 14443 A
Powered by the SIC43S1 chip with Three Modes of AES-128 Based Security
- NDEF Authentication
- Mutual Authentication
- Encrypted Communication
Durable Material: Made from High-Quality PVC with Waterproof Properties
Portable: Designed in The ID-1 Standard Size for Easy Portability

Product Attributes	Description
Product Name	NFC Forum Type 2 Tag card
RFID Chip	SIC43S1
Communication Protocol
Standard	NFC Forum Type 2 Tag ISO/IEC 14443 A
Memory
User Memory Size [bytes]	816
Data Retention [years]	10
Write Cycle [times]	100k
Memory Protection	AES-128 Mutual Authentication
Operating Characteristics
Power Source	Battery-less (Powered by NFC RF Field)
Operating frequency [MHz]	13.56
Printable	Yes, Printable on Both Sides (Glossy white front / back)
Others
Weight [grams]	6
Material Type	PVC

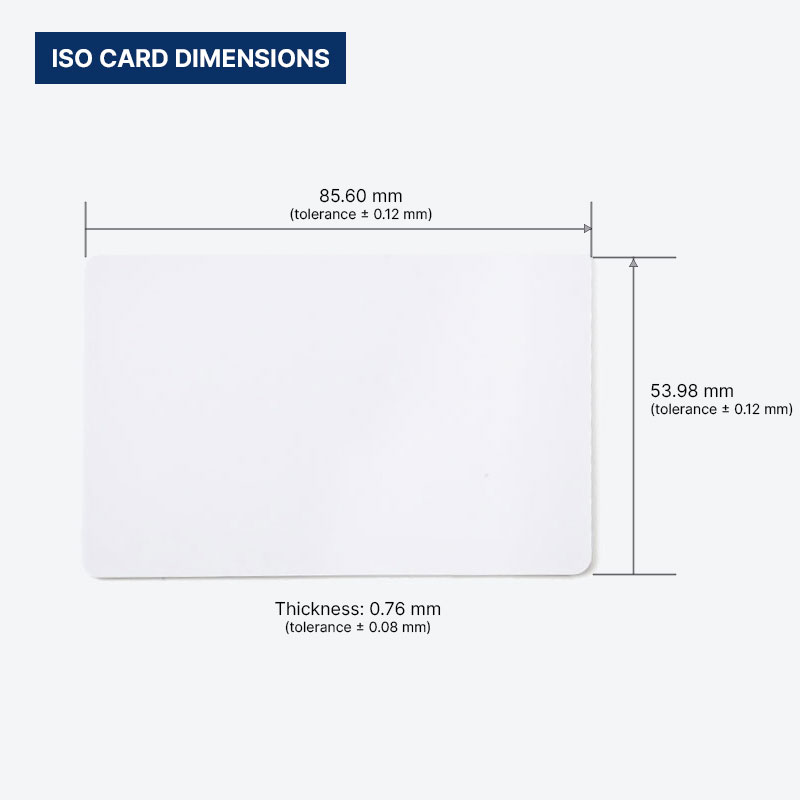

Package Dimensions	Width: 85.60 mm ± 0.12 mm Height: 53.98 mm ± 0.12 mm Thickness: 0.76 mm ± 0.08 mm

Applications

Access Control & Security
- Smart Home Access
- Office Access Control
- Residential Building Access
- Campus, University Access
- Elevator Access Control
- Parking Access Control
- Etc.

Identification Card
- Employee ID Card
- Visitor / Temporary Access Card
- Office Attendance & Time Tracking
- Membership Card
- Gift & Promotional Cards
- Etc.
Sharing Contact Information
- Digital Business Card
- Etc.
Product Authentication & Anti-Counterfeiting
- Warranty Card
- Etc.
Etc.
