NFC Forum Type 5 Tag with Digital Signature – SIC56NL

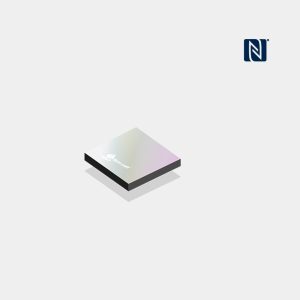

SIC56NL
NFC Forum Type 5 Tag IC with Reprogrammable Digital Signature
SIC56NL is ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 compliant, offering an easy-to-discover NFC experience for consumers and simultaneous reading of multiple tags through its anti-collision function.
Designed for efficient inventory management and item-level authentication, SIC56NL features a 32-byte reprogrammable digital signature to enhance product authentication and provide greater confidence in product authenticity. It also features Persistent Quiet Mode to minimize unnecessary tag responses, improving scanning efficiency during large-scale RFID operations and making it an ideal choice for retail and logistics, smart labels, inventory management, laundry tracking, and industrial identification systems.
Highlight Features
- NFC Forum Type 5 tag Compatible
- RF Interface Based on ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1
- 320 Bytes of User Memory With 50 Years Data Retention
- Multiple-Tag Reading with Fast Inventory Read
- Persistent Quiet Mode to Enable Faster Inventory Speed
- Reprogrammable 32 Bytes Digital Signature
| Product Attributes | Description |
|---|---|
| Product Name | SIC56NL |
| Communication | |
| Protocol | NFC Forum Type 5 Tag ISO/IEC 15693 with AFI and DSFID Support ISO/IEC 18000-3 Mode 1 |
| RF Performance | |
| Operating Frequency [MHz] | 13.56 |
| Data Transfer Rate [kbit/s] | Up to 53 |
| Memory | |
| EEPROM Memory [bytes] | 320 (316 Bytes of User Memory and 4 Bytes of Counter Feature) |
| Data Retention [years] | 50 |
| Write Cycle [times] | 100,000 |
| Security | |
| Memory Access Protection | 32-bit or 64-bit Password Authorization |
| Digital Signature | Reprogrammable |
| Digital Signature Size [bytes] | 32 |
| Digital Signature Technology | Elliptic Curve Digital Signature Algorithm (ECDSA) |
| Features | |
| Counter | 24-bit counter |
| Persistent Quiet Mode Supported | Yes |
| EAS | Yes (with 32-bit Password) |
| AFI | |
| Destroy Command | |
| Privacy Command | |
| Fast Inventory | Yes |
| Resonant Capacitor | |
| On-Chip Resonant Capacitor [pF] | 23.5 |
| Operating Conditions | |
| Operating Temperature | -40ºC to 85ºC |
| Storage Temperature | -65ºC to 150ºC |
| Others | |
| Form Factor | • Sawn Wafer with Bump • DFN (Size : 1.15 x 1.4 x 0.5 mm) |
Applications
- Product authentication
- Pharmaceutical Supply Chain Management
- Asset and Document Tagging
- Library Management
- Laundry Tags
- Smart Packaging
- Smart Toys
- Etc.
SUPPORT MATERIAL
- Demonstration Software : iOS, Android and Windows.
- Reference Antenna Design
